DESCRIPTION

Basic Info

Model NO.	DN325
Local Service Location	United States
Core Components	Motor, Gearbox, PLC, Pressure Vessel
Material	Stainless Steel 304/316L
Filtering Area	0.08m2
Inside Diamete	325mm
Nominal Volume	0.04m3
Filter Cake Height	100mm
Blade Lifting Height	120mm
Motor Power	0.37kw
Total Height	2050mm
Transport Package	Plywood Case
Specification	600KG
Trademark	JhenTen
Origin	China
Production Capacity	10 Set/Sets Per Month

Product Description

Product Description

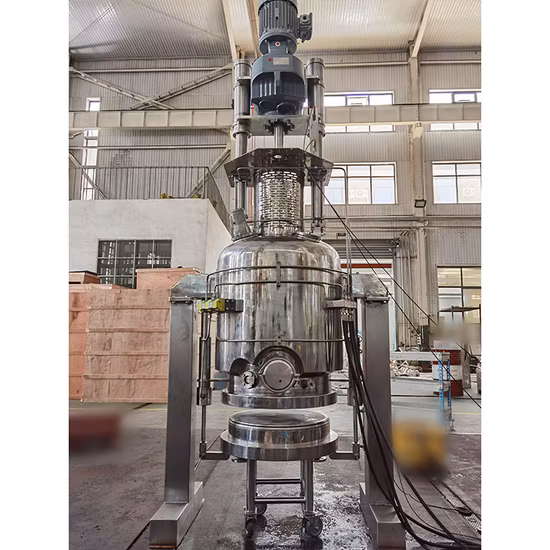

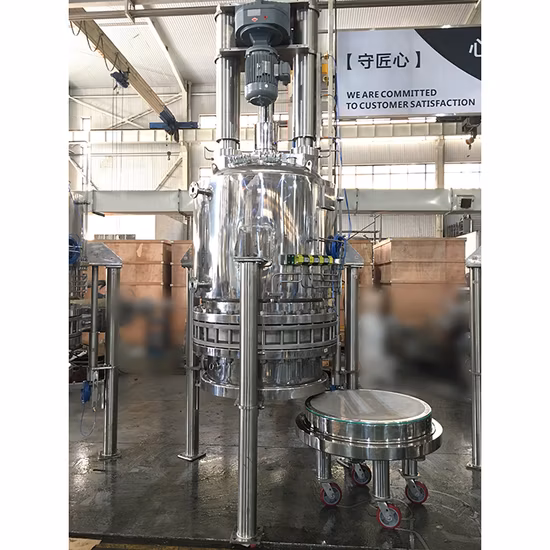

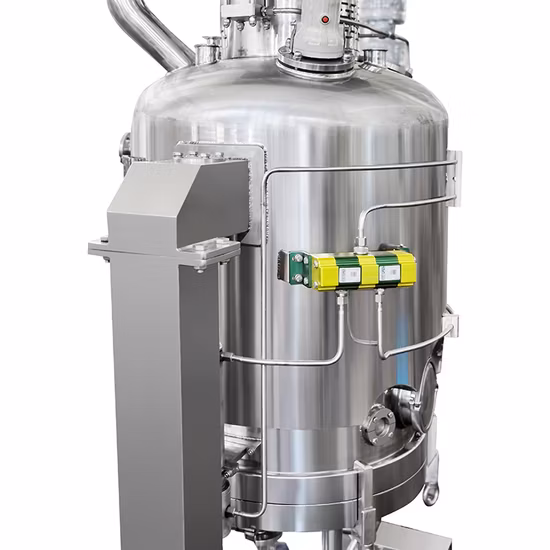

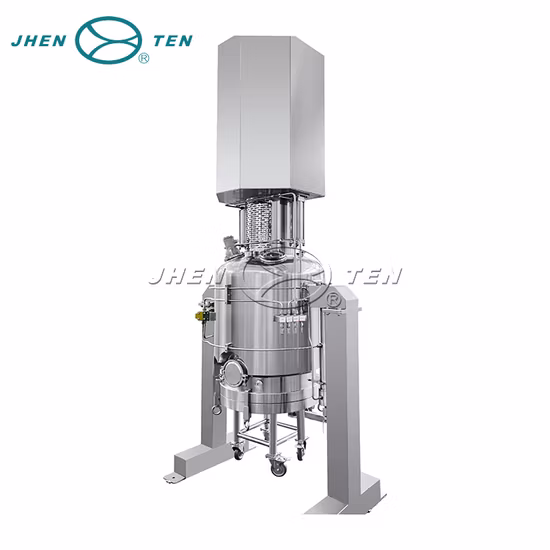

Filter-dryer working principle
The Nutsche filter dryer comnines two process operations, filtration and drying, in a single piece of equipment. Filtration liquid-solid separation and agitated vacuum drying allow batch manufacturing of chemical and pharmaceutical products.Filter dryer can also be used for other process such as vegetal extraction.

Features

1.The design and assembly of the equipment are carried out strictly following national GMP requirements, and fully conforming to pharmaceutical production process requirements. The system is safe, stable and reliable.

2.The equipment materials are strictly controlled. The parts that directly contact materials are made of non-toxic and corrosion-resistant sealing material such as austenitic stainless steel(316L 304), Hastelloy, PTFE FFKM or EPDM etc. The filter screen adopts metal sintering screen made of SUS316L, C22 etc.

3.The interior surfaces of the equipment that directly contact materials are flat and smooth without dead comer for the convenience of cleaning and sterilizing.

4.The equipment dose not pollute the external environment. and the measures of dust prevention, leakage prevention, heat insulation and noise prevention are properly adopted. Under the fully closed working status, the motor, speed reducer and lifting device are protected by stainless steel outer covers, The retum duct in jacket adopts heat preservation cotton to insulate, can greatly reduce heat oss, heat exchange with the outside environment and the influence on the surroundings.

5.Safe and reliable explosion-proof electrical appliances are adopted. The pulleys that can eliminate static electricity and other safe interlocks and safety devices are allocated.

6.All the pipes of materials, solvents and nitrogen gas are designed to have no dead comer and blind pipe. The equipment surfaces are subjected to mechanical automatic fine polishing or electrolytic polishing with the interior surface Ras0 4 and the exterior surface Ra≤0.8.

7.The blending shaft and lateral discharging valve stem are installed with metal bellows.

8.360 spraying cleaning spray balls for CIP are equipped in the tank. The balls can adopt 360-degree rotary spray ball.

9.Dry-process double-face mechanical seal, nitrogen protection and cooling.

10.Dust capture device with CIP function

Batch filtration-drying processes can be in the follow steps

1.Filling

The vessel is filled with a slurry(liquid/solid mixture), generally fed from a reactor or crystallizing tank.

2.FiltrationA liquid/solid separation process takes place through the filtration media ,Filtration(solvent) are collected beneath the filter plate.

3.Piston displacement washingWashing liquid are used to wash the product cake ,Avolume of liquid is displaced through the cake.washing it.

4.Reslurry washingThe agitator is used the re-slurry the solid in a washing solvent.

5.SmoothingThe agitator is used to smooth the wet cake in the filter dryer, to avoid the formation of cracks or preferential paths.

6.Drying and coolingAgitated vacuum drying consists in applying a vacuum on the vessel, while heating the walls and agitator using thermal circuits.This allows to reach the liquid boiling point and to dry the product.

7.DischargingThe specially designed agitator pushes the product out towards a side discharge port.

Main parameters

Model	Filtering Area(m²)	lnside Diameter(mm)	Nomingl Volume(m³)	Filter Cake Heighl(mm)	Blade Lifting Heighl(mm)	Motor Power(kw)	Net Wwight(kg)	Total Height(mm)
DN325	0.08	325	0.04	100	120	0.37	600	2050
DN400	0.125	400	0.07	120	150	0.55	860	2550
DN500	0.19	500	0.15	140	160	2.2	1500	3000
DN600	0.28	600	0.22	180	200	2.2	1700	3300
DN650	0.3	6500	0.28	180	200	2.2	1850	3400
DN800	0.5	800	0.46	200	220	3	2250	3500
DN1000	0.8	1000	0.95	220	250	5.5	3500	3800
DN1200	1	1200	1.2	250	300	7.5	4900	4000
DN1400	1.5	1400	1.9	300	350	11	6500	4500
DN1600	2	1600	2.59	300	350	15	7500	4500
DN1800	2.5	1800	3.2	350	400	15	10000	4700
DN2000	3	2000	4.5	400	450	18.5	11700	5100
DN2300	4	2300	6.4	400	450	22	12800	5200
DN2600	5.3	2600	9	400	450	22	17000	5600
DN2800	6	2800	10.5	450	500	30	21000	5800
DN3000	7	3000	12	500	550	37	24000	6000
