Un Certificatre Stainless Steel Ss 3304 SUS 316L Chemical Acid Storage IBC Tank Intermediate Bulk Container Cubic Tank Container 1000 L 2000L IBC Wine Tank

Products

Un Certificatre Stainless Steel Ss 3304 SUS 316L Chemical Acid Storage IBC Tank Intermediate Bulk Container Cubic Tank Container 1000 L 2000L IBC Wine Tank

Un Certificatre Stainless Steel Ss 3304 SUS 316L Chemical Acid Storage IBC Tank Intermediate Bulk Container Cubic Tank Container 1000 L 2000L IBC Wine Tank

Overview 1000L stainless steel chemical acid storage IBC tank Our intermediate bulk containers are available in the stan

Send your inquiry

DESCRIPTION

Basic Info
Certificate Un
Keywords Storage IBC Tank
Sealing Material EPDM/FKM/Silicone
Outlet Valve DN40/DN50
Surface Treatment Food Grade Polished/2b
Standard Imdg-2008
Weight About 170kgs
Product Name Stainless Steel IBC Tank
Dimension 1152*1152*1140mm(Customized)
Used Chemical ,Food , Pharmacy Liquid and Powder
Transport Package Wooden Crate
Specification 1000Liter/2000Liter/350galon/
Origin China
Product Description

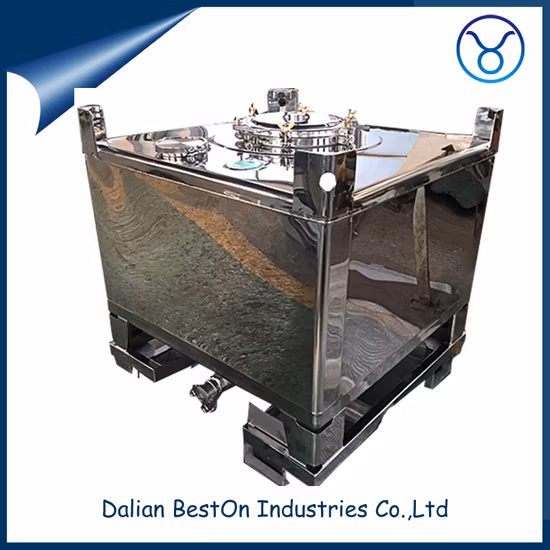

1000L stainless steel chemical acid storage IBC tank

Our intermediate bulk containers are available in the standard sizes listed on this page or in special sizes to fit customer requirements.

Our metal tanks are constructed of 304 series stainless steel or other alloys for storage and transportation of liquid materials. Tank corners have a 2" radius for strength and easy cleanability and one-piece bottom available with slope for complete drainage.

A variety of closures and valves are available for tanks; a 22" drum cover provides easy access for cleaning and inspection. Weld and material finish on tanks can be suited to meet customer needs.

Intermediate bulk containers may be tested and tagged per UN/DOT regulations for handling liquid materials. The tank is also available to meet various food grade requirements of the USDA and FDA.

Application area

Transport and storage of raw materials and products of chemistry, lacquer-, plastics and food industry According to the traffic regulation of ADR, RID and IMDG-codethe UCON-foodcontainer specification of LTP/TPO corresponds to the regulation EG no. 1935/2004

Capacity

150 - 2.000 litres

Handling

  • transportable with all commercial industrial trucks
  • craneable
  • stackable

Advantages

  • stacking angle for stacking of the container with bar for connecting of crane hooks
  • complete emptying and simple cleaning of container due to deep drawn, base with virtually no dead storage capacity and outlet recess and directly flange-mounted outlet gate valve
  • forklift protection blind against damages of outlet armature by forklift tooth


Specification

Dalian BestOn Industries

Factory Add: Rm 503, Unit 2, Building 34, Lv Zhou Ban Dao Bei An, Economic and Technological Development Zone, Dalian, Liaoning, China

Product Description

Sanitary Food Grade Stainless Steel Movable Powder Storage IBC Tank

* The special stainless steel can be recycled in the environment * Designed for the storage of materials such as food, chemicals, pharmaceutical, and other industries. * The corner structure will not cause material residue and ensure no dead comer of sanitation * The mobile wheels are convenient for transportation...* Internal surface polishing treatment for food grade requirement.1. Material: Stainless steel SUS304, SUS316L. The tank has strong anti-corrosion and wear-resisting, and the service life is longer. Suitable for transportation of various powder materials. 2. Surface treatment: Internal surface is mirror polishing. External surface treatment is acid-washing 3. The tank is equipped with a handle, mobile wheels, and a self-brake device which are convenient for transportation. Reasonable structure design satisfies convenient operations of forklift transportation, layer stack, hoisting 4. Inclined bottom design can help discharge quickly and completely and easy to clean without dead angle 5. The tank is made of excellent stainless steel through an argon arc welding process. It is resistant to acid and alkali corrosion and high temperature. Handsome appearance, reasonable structure, easy to clean. 6. A nameplate indicating the company name and internal media


*The following specifications can be adjusted according to your usage/requirement. *If you have drawings/details/photos of the tank, pleasekindly provide it to us, and we can produce and design your required tank.

Capacity

600L(Optional)

Medium

Powder

Material

Stainless steel 304(Optional 316/316L)

Dimension (Φ*L)

1266mm*826mm*1100mm

Working pressure

0.02mpa

Thickness

2mm, 2.5mm, 3mm

Internal Surface Treatment

Polishing 400#

External Surface Treatment

2B pickling

Movable Way

4 casters

Certification

ISO9001

OEM/ODM are Both welcome

Capacity

1000L(Optional)

Medium

Liquid

Material of tank

Stainless steel 304--2mm/2.5mm

Material of pallet

Stainless steel 304--50*50*t4mm

Dimension

1152*1152*1140mm

Weight

236kg

Manhole

430mm

Bottom valve

DN50

Relief valve

1pc on the top

Input nozzle

3 inch

Tank bottom shape

sloped bottom for virtual 100% discharge

Working pressure

0.02mpa

Manhole gasket material

silicone

Internal and external

Acid-passivation

surface treatment

Acid-passivation

Application

Storage and transport of liquid products

OEM/ODM are Both welcome

Product Parameters

PRODUCT SPECIFICATION

1000L /2000L /3000L un31ay stainless steel tank containers
A UN approval from CCS and BV
B Manufacture with ISO 9001C Design- IMDG 2008
D UN 31A/Y or UN11AY-IMDG



Product Name

Stainless Steel Fuel Container Type IBC Tote Tank for Black Oil

Material

Stainless Steel 304 /Stainless Steel 316L

Capacity

1000L /1200L /1250L /1300L /1350L /1500L/2000L

Standard

IMDG-2008

Surface treatment

Food grade mirror plate /Polish / 2B

Outlet valve

DN40/DN50

Sealing material

EPDM/FKM/SILICONE

Used

Chemical, Food, Pharmacy liquid, and powder

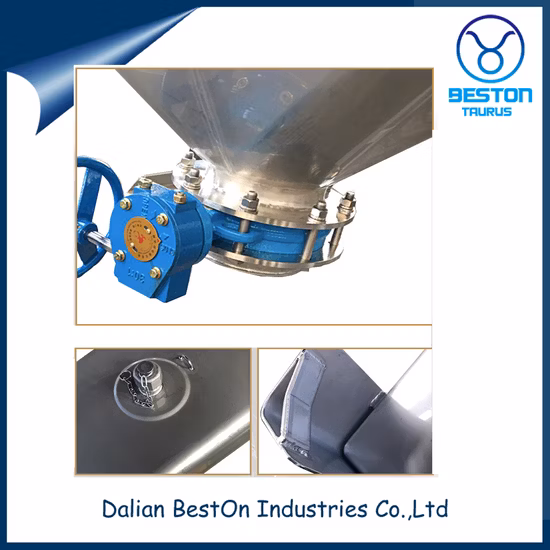

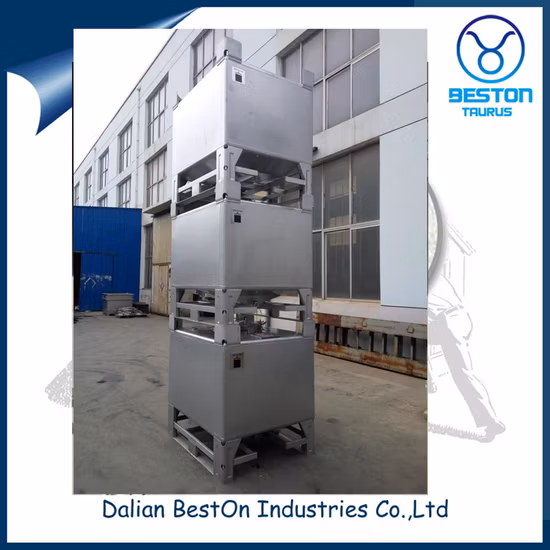

Detailed Photos

Dalian BestOn UN Certificate 1000L Stainless Steel IBC Intermediate Bulk Container OEM Customized China IBC Equipment Supplies Wholesale SS Steel IBC Containers
